Ceramic tile installation: the guide to prepare, lay, and succeed with your tiles

Installing ceramic tile scares a lot of people. We get customers every week in the store who hesitate between doing it themselves or hiring a tiler. The truth is, with the right tools, the right products, and a clear method, a motivated DIYer can achieve a solid result. However, if you skip preparation or choose the wrong mortar, you will regret it in six months when your tiles start to lift.

This guide was built from what we see in the store and what our partner installers report to us after hundreds of jobs. We will get straight to the point.

Preparation: the step everyone rushes through

Even before opening your first box of tile, you need to assess your substrate. This is where most problems arise. Yet, almost everyone rushes through this step.

Your floor or wall must be clean, dry, solid, and level. The surface of your floor should have a maximum flatness tolerance of 3 mm over 3 meters (about 1/8 inch over 10 feet). Measure with a long straight ruler. If you have dips or bumps beyond this tolerance, correct them with a self-leveling compound or patching compound before starting.

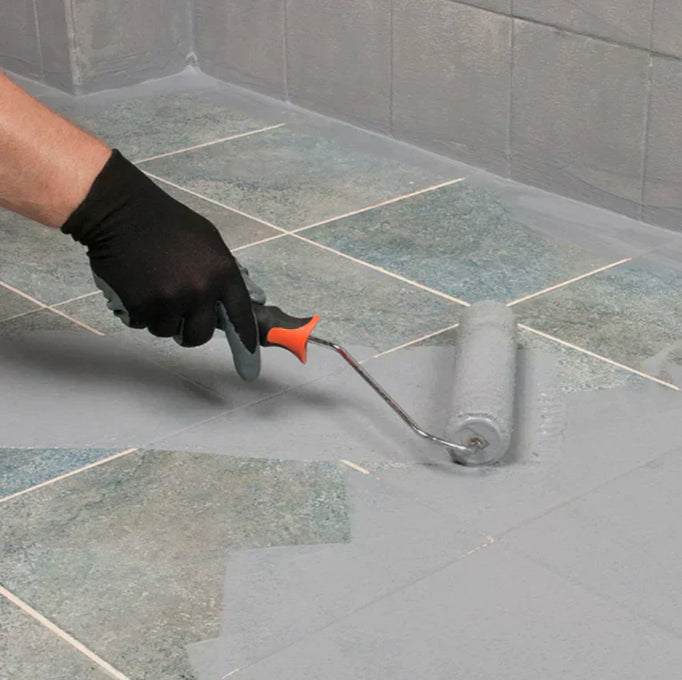

For concrete floors, check that there are no traces of paint, old glue, or curing products. These residues prevent the adhesive from sticking properly. On smooth concrete — often seen in basements in Quebec — a bonding primer is essential. The Eco Prim Grip by MAPEI is what we recommend: it is a ready-to-use primer that creates a rough texture on non-absorbent surfaces. Apply it with a paint roller, wait 2 to 4 hours for it to dry (depending on the humidity in your home), and the surface is ready.

It takes 5 minutes and it changes everything.

If you are installing over an old ceramic floor without removing it, the primer is even more important. The same goes for painted gypsum board or varnished plywood. Always follow the manufacturer's instructions for drying time — do not rely on touch, respect the indicated hours.

On a wall, check that the support is well fixed. Gypsum board that moves or has absorbed moisture will cause cracks in your grout joints within a few months. In a bathroom, around the shower or bath, it is non-negotiable: a waterproof membrane (Kerdi by Schluter or AquaDefense by Laticrete, for example) must be installed BEFORE laying anything.

Tile layout — do a dry lay first

This is the step beginners almost always skip, and it’s a shame because it takes 30 minutes and saves hours of frustration.

Start by doing a dry lay — place your tiles on the floor without glue to see the result. Measure the length and width of the room. The goal is to avoid ending with a thin strip of tile along a visible wall. Ideally, the cuts at the ends should be at least half the width of a tile.

Draw chalk reference lines from the center of the room. That’s where you will lay your first tile. Work from the center towards the walls — never the other way around.

Also think about the pattern. Rectangular 12 x 24 inch tiles (the most popular right now) offer several options for tile layout:

Straight laying — The simplest and most economical. The direction in which you orient the tiles changes the visual effect: along the length of the room, it lengthens the space. Perpendicular, it widens it. It’s also the option that generates the least cutting waste.

Staggered (brick) laying — Offset each row by a third or half. Be careful with large formats: manufacturers recommend a maximum offset of 33% to avoid "lippage" (when one tile edge overlaps another). Check the instructions from your tile manufacturer before choosing this pattern.

Chevron laying — The result is spectacular, but expect 15 to 20% cutting waste. Chevrons require a lot of precision and each tile must be cut at an angle. It’s a project for someone who already has experience — or a lot of patience.

L-shaped or parquet laying — Beautiful movement effect without the complexity of chevrons. The tiles are arranged alternately to form an L, with less waste. Often used in corridors to break the length effect.

For a wall, the logic is similar. Lay from bottom to top, and if your wall has a dominant vertical orientation (for example a narrow backsplash), center your tiles so that the cuts at the ends are symmetrical.

Tools and materials: what to buy (and what to avoid)

Where most purchasing mistakes are seen is in the choice of glue and trowel. The two are linked — you cannot decide one without the other.

Glue (cement adhesive / mortar)

The choice of mortar depends on three things: the type of tile, the substrate, and the place where you install. For porcelain floor tiles in a dry room, a standard modified mortar (like MAPEI's Kerabond or Laticrete's 254 Platinum) does the job very well. For a bathroom or any wet area, choose a high-performance mortar rated C2, water-resistant.

For large formats (tiles 16 x 32 or larger), a deformable mortar (class S1 or S2) is necessary. These tiles are more subject to thermal movement, and a rigid mortar will eventually crack. A double bonding is also recommended: you apply glue to the floor AND to the back of the tile. It takes longer, but it makes the difference between a tile that lasts 20 years and a tile that sounds hollow after 2 years.

To mix your mortar, always put the water first in the bucket, then add the powder. The reverse creates lumps impossible to undo. Respect the indicated maturation time (usually 5 to 10 minutes rest after the first mix, then a second stirring).

The trowel

The size of the notched trowel depends on the size of your tiles. Tiles from 4 x 4 to 8 x 8 inches: 1/4 x 1/4 trowel. 12 x 12 tiles: 1/4 x 3/8 trowel. 12 x 24 tiles and larger: minimum 1/2 x 1/2 trowel. 24 x 24 tiles: 3/4 x 3/4 trowel. Always apply the glue in straight lines, from left to right. Never circular movements — it traps air.

Other essential tools

Plan for a 4-foot bubble level (or laser), spacers suitable for the desired joint width (1/8 inch for a modern look, 3/16 inch for a standard look), a leveling system (clips and wedges), a manual tile cutter for straight cuts, a wet saw for complex cuts where the blade must stay wet at all times, an angle grinder with diamond disc for irregular shapes, a tile sponge, a bucket of clean water, and knee pads. Your body will thank you after a few hours on the floor.

Installation, step by step

Good. Your surface is ready, your lines are drawn, the mortar is mixed. Let's go.

Apply the glue. Spread the mortar over a section of about 3 to 4 square feet at a time. No more. The mortar has an open time of 15 to 20 minutes depending on the temperature. If you spread too much and the surface starts to crust, the tile will not stick. Hold the trowel at 45 degrees and create uniform grooves in the same direction.

Place the first tile. Position it on the reference line, in the center of the room. Press firmly while making a slight back-and-forth movement perpendicular to the glue grooves. This movement crushes the grooves and eliminates air pockets. Check the level immediately.

Continue installation. Place the next tiles inserting spacers between each tile. Check the level every 2 or 3 tiles. If a tile is too high, gently tap with a rubber mallet. If it is too low, remove it, add adhesive and replace it.

Cutting. Measure each cut individually — walls are never perfectly straight. Measure at the top and bottom of the tile, take the shortest measurement minus the width of the joint. For a straight cut, the tile cutter does the job. For L-shaped or angled cuts, use a wet saw. Always wear safety glasses.

Let dry. Do not walk on your tiles for at least 24 hours. In winter in Quebec, with heating drying the air, it can take 48 hours.

Seriously. Resist the temptation.

Grout: last step, biggest visual impact

Grout is probably the step that has the most impact on the final look. The color of the grout completely changes the appearance. A grout the same color as your tiles gives a continuous effect. A contrasting grout makes each tile stand out individually — but also shows every imperfection.

Wait until the adhesive is completely dry (minimum 24 hours). Remove all spacers and clean the joints. For a bathroom or kitchen, use an epoxy grout or a high-performance cement grout resistant to water. Epoxy grouts cost more and you have about 30 to 45 minutes before it hardens, but they are practically waterproof.

Pour the grout onto the tiles and spread it with a rubber float held at 30 degrees. Work diagonally to the grout lines — if you move the float parallel to the joints, you will dig the grout out instead of pushing it in. Work in sections. After 15 to 20 minutes, wipe the tiles with a damp sponge to remove the grout haze. Rinse frequently in clean water. Repeat 2 to 3 times for a clean result.

If you used a cement grout, apply a sealer once the grout is completely dry (48 to 72 hours). Reapply every 12 to 18 months.

The 5 mistakes we see every week

The most common mistake we see? No primer on smooth concrete. Smooth concrete does not absorb adhesive — period. Without primer, your tiles will lift in a few months. And a pot of primer costs what, $40? Compare that to the price of a complete redo.

Second classic: the wrong trowel size. Trowel too small = not enough adhesive = tiles that sound hollow when you walk on them. We hear this at least once a week at the counter.

Large formats without double bonding is another common problem. Aim for 95% floor coverage. On walls, 80% can work, but on floors, below 95%, you’re asking for trouble.

Forgetting the membrane in the shower. We can’t say it enough. Installing directly on green gyproc, even the supposedly moisture-resistant green, is a guarantee of water damage within 2-3 years.

And finally — grouting too quickly. If the adhesive isn’t completely dry, residual movement will crack your grout joints. Wait 24 hours. Yes, even if it feels dry to the touch.

Choosing your tiles well before purchase

Before your purchase, take the time to think carefully beyond color and size.

For a floor, choose a tile with an adequate friction coefficient (PEI 3 minimum for residential use). Tiles that are too smooth in a bathroom are an accident waiting to happen.

It’s non-negotiable.

Light colors visually enlarge a room. Dark colors warm it up but can make it feel smaller. For a small space, large format tiles with thin joints give a nice enlarging effect.

Always buy 10 to 15% more than the surface to cover. For a herringbone pattern, plan for 20%. Make sure all your tiles come from the same batch — the number is printed on each box. Tiles from different batches can have visible color variations. Inspect each box at purchase: cracked or chipped tiles on the edges happen even with the best brands, and it’s easier to exchange them at the store than to discover them on installation day.

A result that lasts for years

If you take the time to do each step well — especially the preparation, that’s really where it all happens — your ceramic will last for years. Maintenance after that? A mop with warm water, that’s about it.

At Entrepôt de la Réno, we have the tiles, the adhesives, the grout, the membranes, the tools — everything is under one roof. But above all, we have people at the counter who can look at your plan and tell you exactly what you need.

Come visit us in store in Québec, Trois-Rivières, or Brossard — we’ll be happy to look over your project with you.
